Description
AUGMENTED REALITY
It’s important that you know what your speakers will look like, so we’ve made something you can interact with.
Tap the AR icon to the right and see the Micro Sub in your room.
MICRO SUB. MIGHTY BASS.TM
The perfect accompaniment to your existing home audio system. With Chromecast and Alexa compatibility, you’re only a few steps away from experiencing awe-inspiring audio, right from the comfort of your living room.
QUICK AND EASY
PLUG & PLAY
SETUP
Quick and easy setup, plug-in and sync to home Wi-Fi network and group with any existing speakers
MULTIROOM
WIRELESS
CONNECTIVITY
Setup the micro sub anywhere without the restrictions of speaker cable.
WORKS WITH ANY BRAND OF GOOGLECAST SPEAKER
Group with any brand of speaker which has Googlecast to create a multi-brand multi-room audio setup.
ETHERNET HARDWIRED CONNECTION
Data in and Data out for streamlined cable management and a rock-solid data connection.

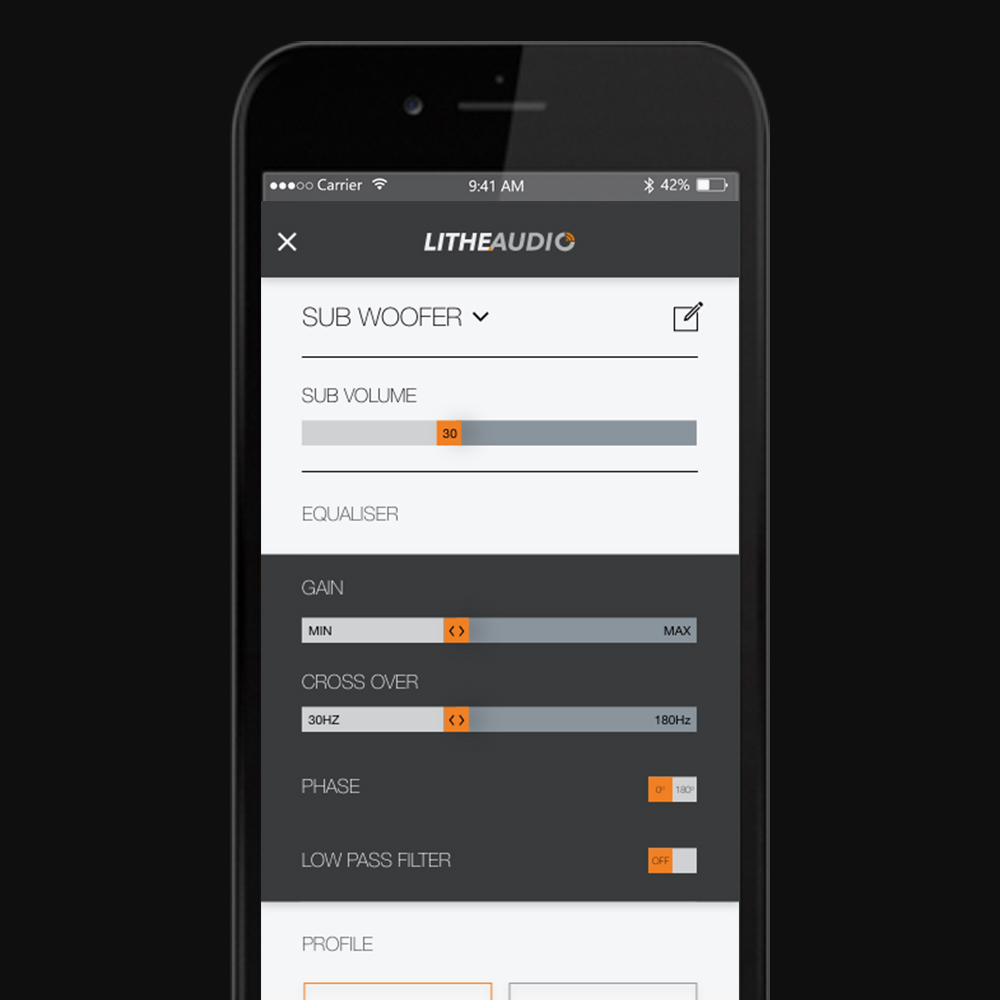

APP-BASED
DSP
Full control over the crossover frequency, phase, volume, gain, low & high pass filter with presets.
HIGH-QUALITY
AUDIO
Blends high power with 1x active and 2x radiator 4” drivers to deliver immersive bass with ease.
THE TECHNICAL BIT
Simple to install diagram via a plug socket. Setup from your phone and connect via the Lithe Audio App or to your Smart Home systems such as Control4, Loxone and Fibaro
FEATURES
- Plug & Play
- Wireless Connectivity
- Works With Any Googlecast Speaker
- Ethernet Hardwired Connection
- APP based DSP
- High Quality Audio
- App control via IOS or Android, full control with easy drag and drop zoning
SPEAKER
- Sound Quality THD+N<0.009%, 40Hz-200Hz @ -10dB
- RMS Power: 50W RMS @ 4 Ohm load
- Sensitivity (1W/1m): 90dB
- Type: Class D (Digital)
- Audio Compression: 192Khz/24bits
- Woofer: 4” Polypropylene Driver / 2 x 4” Passive radiator
MUSIC ACCESS
- Audio Formats Supported: MP3, WMA, AAC (MPEG4), AAC+, ALAC, FLAC, APE, WAV, OGG, LPCM
- Audio Sample Rate: up to 192kHz 24bit
- Music Services Supported by Lithe Audio include; Airable Radio, Podcast, Tidal, Deezer, Soundmachine, Amazon Music, Napster, Spotify, etc.
- Operating Systems (for stored files) Windows XP SP3 and higher; Mac OS X 10.6.8 and higher; NAS (networkattached storage) devices supporting CIFS
GENERAL
- 50/60Hz / 3A
- Output Supply : DC24V / 3A >5mins
- DC24V / 5A Peak power >10s
- Dimensions (W x D) 174 x 174 mm (6.85 x 6.85 in)
- Weight 3kg (6.61 lbs) • Operating Temperature 0º to 40º C (32º to 104º F)
- Storage Temperature -20º to 70º C (4º to 158º F)
- Standby power: 1.3W / 0.02A
- Connected power: 1.5W / 0.03A
- Playing Music: 2.8W – 10.5W / 0.03A – 0.09A
WIRELESS NETWORKING
- Expandable up to 30 speakers within same Wi-Fi network
- Wi-Fi Connectivity: Wi-Fi CERTIFIED™ 802.11 b, g, n, ac WPA™ – Personal WPA2™ – Personal WMM®, Wi-Fi Protected Setup™
- Wireless connectivity works on your home Wi-Fi network with both 2.4GHz/5GHz broadcast routers
- Internet connection required for access to Internet radio stations, online music services and software updates.
- Recommended Routers: Archer MR600 (TP-Link), UDM (Ubiquiti) and 2866AC-K (Draytek)
WHAT’S IN THE BOX
- Sub Woofer
- Power Cord
- Instruction manual
