Description
WINNER OF CEDIA AWARD
BEST NEW HARDWARE
Lithe Audio, the innovative UK audio brand, is delighted to have been awarded Best New Hardware 2020 by CEDIA for the PRO version of its successful Active Ceiling Speaker range.

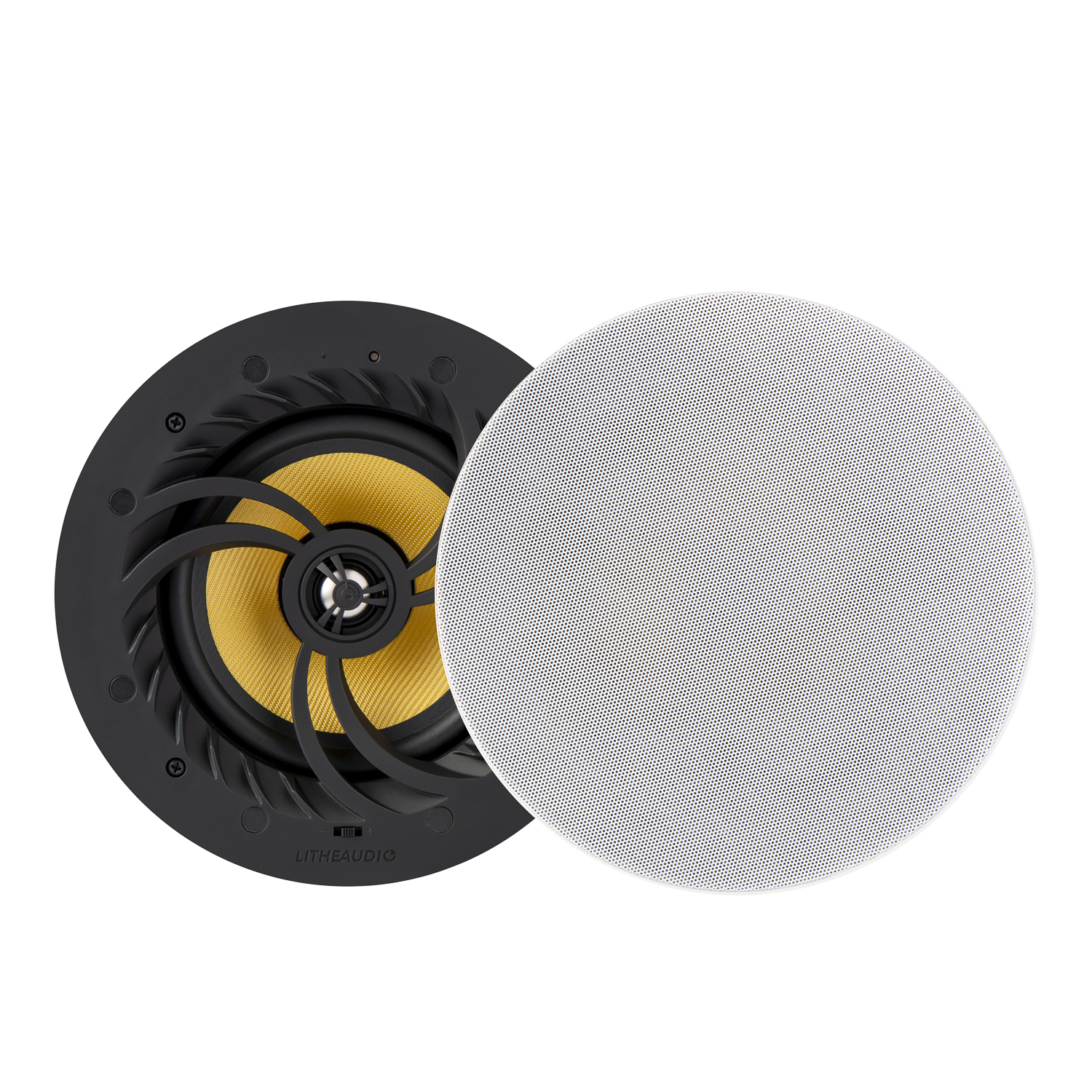

THE ULTIMATE INSTALLATION SPEAKER
Designed explicitly to be top of the Lithe Audio integrated speaker range. This award-winning in-ceiling active offering delivers many leading features, including the optional bolt-ons for WiSA integration to create a 7.1 surround sound system, PoE power delivery for the convenience of easy installation and the most comprehensive set of wireless & wired connectivity options.
ALL-IN-ONE
SOLUTION
Amplifier, Wi-Fi, Bluetooth and ceiling speaker built-in, so all you need is power
MULTI-ROOM
AUDIO
Group zones and stream high-quality audio from your phone or tablet throughout your home
AMPLIFIER
BUILT-IN
Powerful high efficiency 60W RMS Class D amplifier
OPTICAL INPUT
Connect to your AV equipment, using the high-speed digital optical cable for a high quality audio signal
APP-BASED DSP
Calibrate and adjust the Treble, Mid and Bass individually, all from your phone.
WIRELESS & WIRED
Dual-band Wi-Fi 5GHz / 2.4GHz or via ethernet cable (Daisy-chain to reduce cable runs)
AIRPLAY 2 & CHROMECAST BUILT-IN
Fully certified, wirelessly stream from any mobile or tablet directly to the speaker
HIGH RESOLUTION
AUDIO
Delivering audio steaming at 192kHz / 24bits your music has never sounded soo clear.
VOICE
CONTROL
Connect to your Google Home or Alexa devices for groupable voice control
UNRIVALLED CONNECTIVITY
Designed to be easy to install, whilst holding convenient features for residential and commercial uses. Strong wireless and wired connections to your networks and compatibility with all your favourite streaming services. Look into our optional bolt-ons if you’re looking for PoE functionality or WiSA if you want home cinema wireless Atmos setup.
OPTIONAL BOLT-ONS
Wireless technology is the future, but hardwired solutions are still essential in larger or commercial projects. The Pro Series Wi-Fi Ceiling Speaker allows you to choose between a number of high speed wireless connections, or a hardwired data connection using a CAT5 or CAT6e cabled connection.
POE MODULE
(OPTIONAL BOLT-ON)
Power the speakers via the PoE for wiring convenience through the networking infrastructure.
WISA MODULE FOR HOME CINEMA
(OPTIONAL BOLT-ON)
The Dolby Atmos in-ceiling solution for any Wisa home cinema setup.
LITHE AUGMENTED REALITY
Open your phone camera and scan the QR code below
to view the speaker in your room with Augmented Reality!
THE TECHNICAL BIT

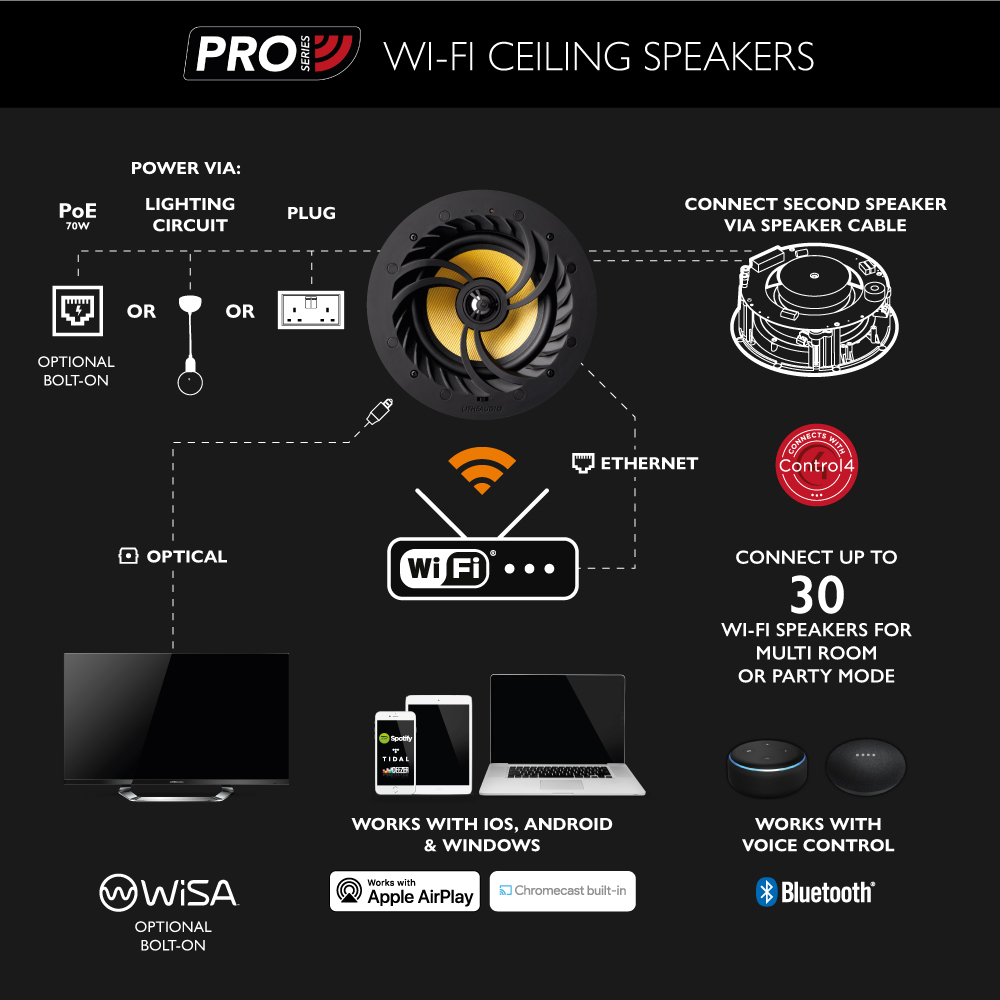

Simple to install diagram via plug socket or via lighting circuit or PoE Addon. Showing connections to Computers, Phones and smart home systems such as Control4, Loxone and Fibaro
FEATURES
- Multi-room Ceiling Speaker
- All-in-one solution – Amplifier and Wi-Fi all built in, just add power.
- Easily connect to plug socket or existing lighting circuit
- Built-In AirPlay 2 and Google Chromecast
- DLNA and UPnP
- Connect up to 30 master speakers (30 zones)
- App control via IOS or Android, full control with easy drag and drop zoning
- Wireless and Wired Connection
- High Res Audio
- Expandable Hardware
- WiSA Certified
12X CONNECTIVITY OPTIONS!
- Wi-Fi certified 2.4Ghz / 5Ghz (802.11a/b/g/n/ac)
- Apple AirPlay 2 certified
- Google ChromeCast built-in certified
- Spotify connect certified
- Bluetooth
- Optical
- Ethernet Connection In / Out
- DLNA/uPnP connections
- Works with Alexa
- Works with OK Google
- WiSA with optional bolt-on
- Control4, Fibaro & Loxone Drivers
- Recommended Routers: Archer MR600 (TP-Link), UDM (Ubiquiti) and 2866AC-K (Draytek)
AUDIO SPEC
- Woofer: 6.5″ Woven Glass Fiber Cone
- Tweeter: 0.75″ Titanium Cone
- Mono/Stereo Switch
- RMS Power: 60W RMS (2x 30W)
- Impedance: 8 Ohms nominal
- Sound Quality THD+N 0.009%, 55Hz-20kHz (+/- 3dB)
- Sensitivity (1W/1m): 90dB
- Line In (Optical), auto-detecting
- Type: Class D (Digital)
- Audio Compression: 192Khz/24bits
- Woofer: 6.5” Woven Glass Fiber cone
- Tweeter: 0.75” Titanium Cone
MULTI ROOM AUDIO
- Connect Multiple zones wirelessly or wired
- Spotify Connect (Premium Users Only)
- Play audio from Spotify, Deezer, Tidal, Tune in, Napster, Qobuz, Palco MP3 and SoundMachine
- Play music to a group or individual rooms
- Group, mix and match multi-branded speakers with AirPlay 2 and Chromecast
SPEAKER SPEC
- 210mm cut-out diameter
- Weight: 3.7kg
- Dimensions: (W x D) 230 x 110 mm
- Power Input Supply : 100 – 240V, 50/60Hz / 2A
- Transformer Output Supply : DC24V / 2.5A
- Standby power: 1.3W / 0.02A
- Connected power: 1.5W / 0.03A
- Playing Music: 2.8W – 10.5W / 0.03A – 0.09A
- Operating Temperature 0º to 40ºC (32º to 104ºF)
- Storage Temperature -20º to 70ºC (4º to 158ºF)
WHAT’S IN THE BOX
- Pro Series WiFi Ceiling Speaker
- Passive Ceiling Speaker
- 5M Speaker Cable
- Power Supply
- Cutting template
- Instruction manual
OPTIONAL BOLT-ONS
- Lithe Audio PoE Module Bolt-On
- Lithe Audio Pro WiSA Bolt-On
- Lithe Audio WiSA SoundSend Transmitter
