Description
POWER IT. SYNC IT. PLAY IT.®
With the Amplifier & Bluetooth built-in, this is a completely wireless solution. Just add power from your mains or lighting circuit. Tucked discreetly into your ceiling with a 3mm deep magnetic grill, our All-in-one Bluetooth 5.0 Ceiling Speakers promise perfectly uninterrupted low latency audio projection, giving you complete sound coverage for your room.
ALL-IN-ONE
SOLUTION
Amplifier & Bluetooth built-in, so all you need is power
30M WIRELESS
RANGE
Latest Bluetooth 5.0 technology built-in
AMPLIFIER
BUILT IN
Powerful 50W RMS Class D amplifer
POWER VIA
LIGHTING CIRCUIT
Fast & easy installation; connects to your lighting circuit or use a plug
.png)
VOICE CONTROL WITH ALEXA OR GOOGLE
Fully compatible with Amazon Echo and Google Home devices
CONNECT TO YOUR TV VIA BLUETOOTH
Low latency quality audio with aptX technology
RCA INPUT
Hardwire a turntable, PC or your old iPod
HIGH QUALITY AUDIO
Delivering superb sound quality with pin sharp clarity
THE TECHNICAL BIT
Simple to install diagram via plug socket or via lighting circuit. Showing connections to Alexa, Google home or Siri via Bluetooth or via RCA to play TVs, CD player etc…
FEATURES
- Bluetooth 5.0 with a 30m connection
- All in one Built in Amplifier and Bluetooth
- Easily connect to plug socket or existing lighting circuit
- Frameless protective metal grille, magnetically attaches to the speaker
- Any Electrician can fit within 30 minutes
- Works with Google Home Mini (no pin required)
- Works with Amazon Echo dot (no pin required)
CONNECTIVITY
- Works with any Bluetooth v5.0 device (backwards compatible)
- aptX low latency chipset
- Wireless Range: Up to 30 metres (with compatible Bluetooth V5.0 devices)
- Autodetects RCA connection for TV, Amplifier, etc
- Output for additional Passive slave speaker
- Lithe LINK connect upto 3 master BT speaker to play on all
AUDIO SPEC
- Woofer: 6.5″ Polypropylene Cone
- Tweeter: 0.75″ Titanium Cone
- Mono/Stereo Switch
- RMS Power: 50W RMS
- Impedance: 8 Ohms
- Sound Quality THD+N 0.009%, 55Hz-20kHZ
- Sensitivity (1W/1m): 90dB
- Audio Sample Rate: 8Khz
- Digital Class D Amplifier
FOR HOTEL & APARTMENTS
- Renaming service to change speaker name
- Change PIN to a unique number
- Volume capping switch to reduce volume by 50%
SPEAKER SPEC
- 210mm cut-out diameter
- Weight: 3.7kg
- Power Supply: DC24V / 2.5A
- Dimensions: (W x D) 230 x 97 mm
- Operating Temperature: 0º to 40º C
- Storage Temperature: -20º to 70º C
- Limited Warranty: 2 Year
WHAT’S IN THE BOX

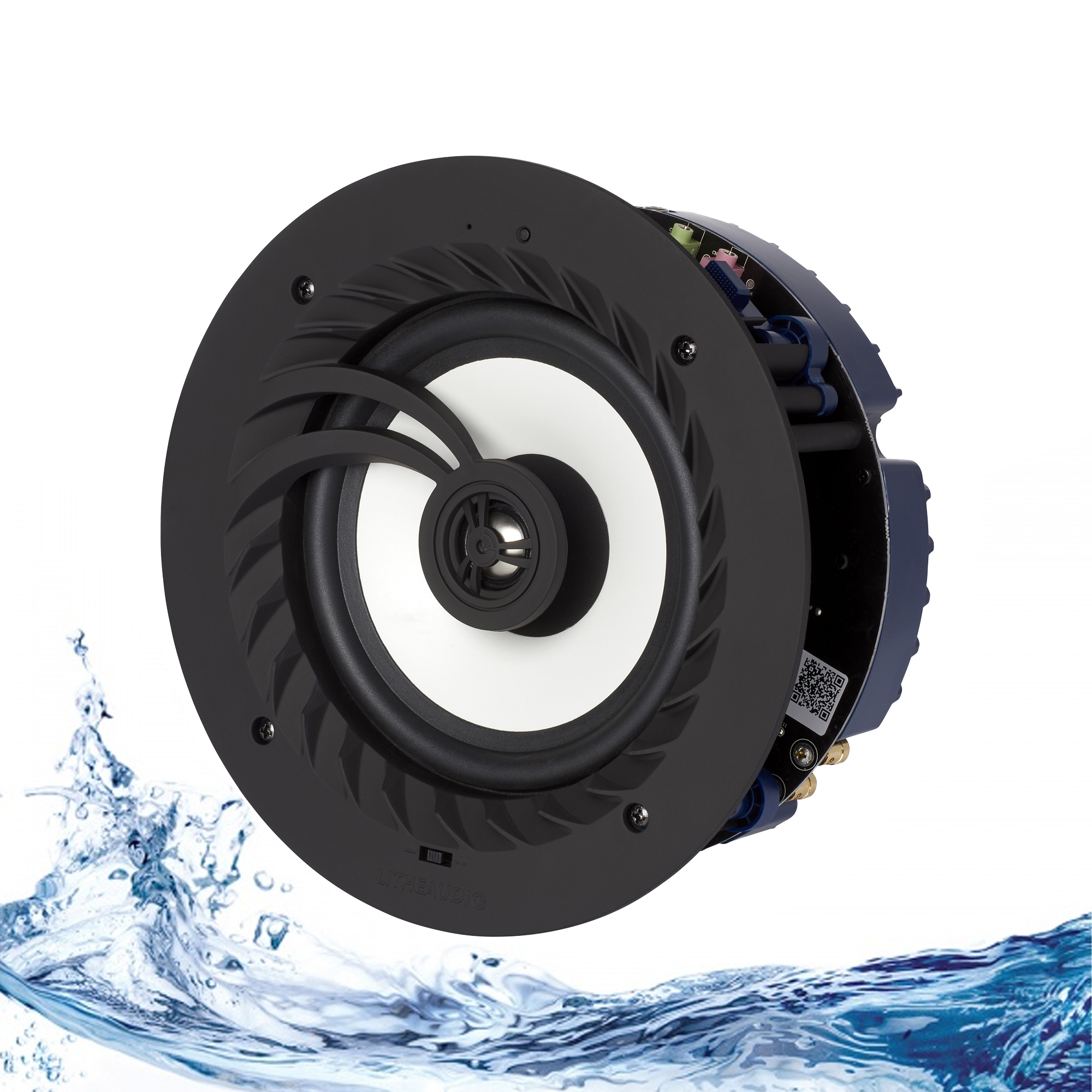

- IP44 BT 5 Ceiling Speaker
- Power Supply
- Cutting template
- Instruction manual
